Item : 019372

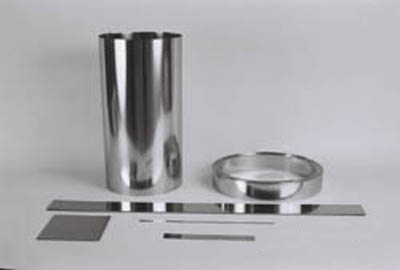

Name : Molybdenum Sheet

Price : Contact us

Details:

Other sizes and tolerances are available.

Thickness Max. Width

.005" to .015" 24"

> .015" to .040" 24"

> .040" to .090" 24"

Standard Thickness Tolerance

Thickness .25" to 6" 6" to 12" 12" to 24"

.005" - .009" � .0005" � .0005" � .002"

.009" - .015" � .0008" � .0009" � 10%

.015" - .020" � .0010" � .0010" � 10%

.020" - .040" � .0015" � .0015" � 10%

.040" - .050" � .003" � .003" � 10%

.050" - .065" � .004" � .004" � .004"

.065" - .090" � .005" � .005" � .005"

Standard Width Tolerance

Thickness .25" to 6" 6" to 12" 12" to 24"

.005" - .009" � .012" � .015" � .025"

.009" - .015" � .012" � .015" � .025"

.015" - .020" � .012" � .020" � .025"

.020" - .040" � .020" � .030" � .030"

.040" - .050" � .020" � .030" � .030"

.050" - .065" � .020" � .030" � .030"

.065" - .090" � .030" � .031" � .031"

Surface Condition

Surface can be supplied in a shiny, matte, satin, or as-rolled condition; dependent upon thickness and width parameters.

Heat Treatment

Molybdenum flat products are rolled and annealed to provide the optimum condition for the desired end use (Furnace, Punch, Deep Draw).
