Item : 019374

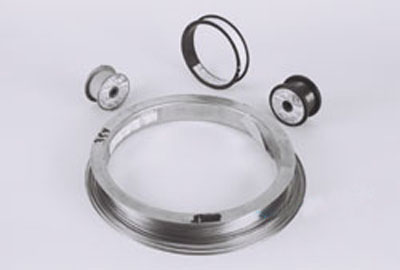

Name : Molybdenum Wire

Price : Contact us

Details:

General Properties

Atomic Weight 95.95

Density 10.2 g/cc

Melting Point 2610� C

Boiling Point 5560� C

Coefficient of Linear Expansion at 20� C 5/3 x 10-6/�C

Thermal Conductivity at 20� C 0.382 cal/sq cm/cm/sec/�C

Specific Heat at 20� C 270 J/kg

Wire Types

Elmet produces two types of molybdenum wire; pure and HCT. Diameter sizes range from 0.001 inches to 0.250 inches.

The pure wire products find use in most standard applications for production of mandrels, supports, furnace elements, furnace windings and formed parts. HCT is a potassium silicate doped product which has a higher recrystallization temperature and for diameters below 0.090 inches it exhibits better ductility after recrystallization. It is used in more demanding applications such as for halogen lamp leads where it provides superior weldability and glass-to-metal seal properties.

Pure Molybdenum Wire Applications and Properties

Typical Application Description Available Diameters Tolerances

Support Wire Cleaned .003" to .020" � 3% wt

Support Wire Cleaned .020" to .050 " � 1.5% dia

Redraw Wire Black .001" to .020" � 3% wt

Redraw Wire Black .020" to .060" � 1.5% dia

Heating Elements Cleaned .001" to .020" � 3% wt

Heating Elements Cleaned .020" to .250" � 1.5% dia

Mandrel Wire Cleaned .004" to .020" � 1% to 3% wt

HCT Molybdenum Wire Applications and Properties

Typical Application Description Available Diameters Tolerances

Halogen Leads Cleaned .010" to .035" � 3% wt

Support Wire Cleaned .003" to .030" � 3% wt

Heating Elements Cleaned .001" to .020" � 3% wt

Heating Elements Cleaned .020" to .250" � 1.5% dia
